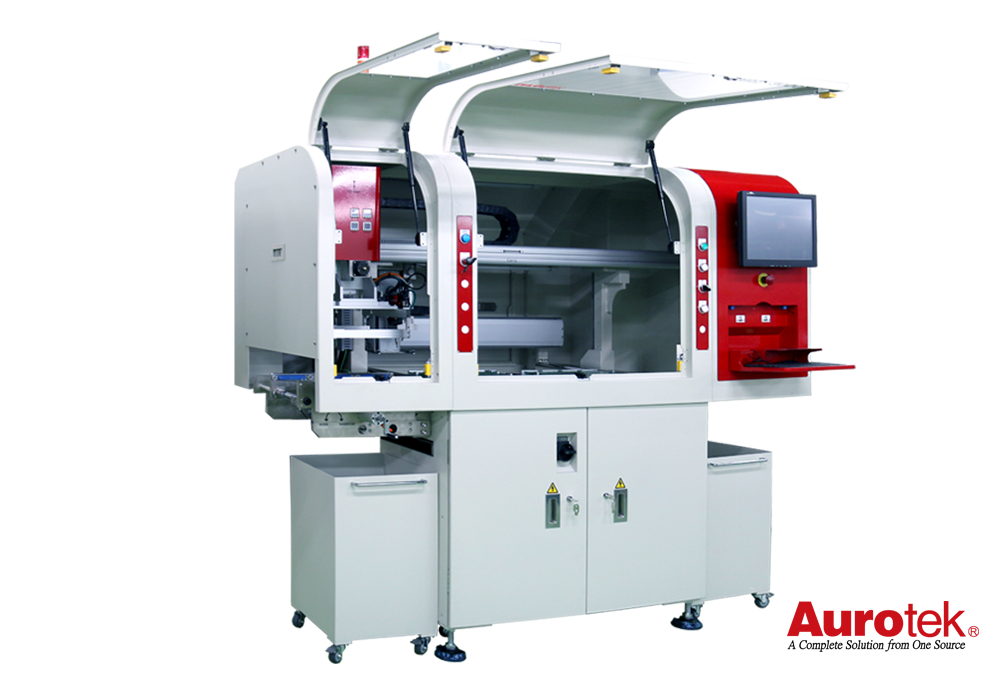

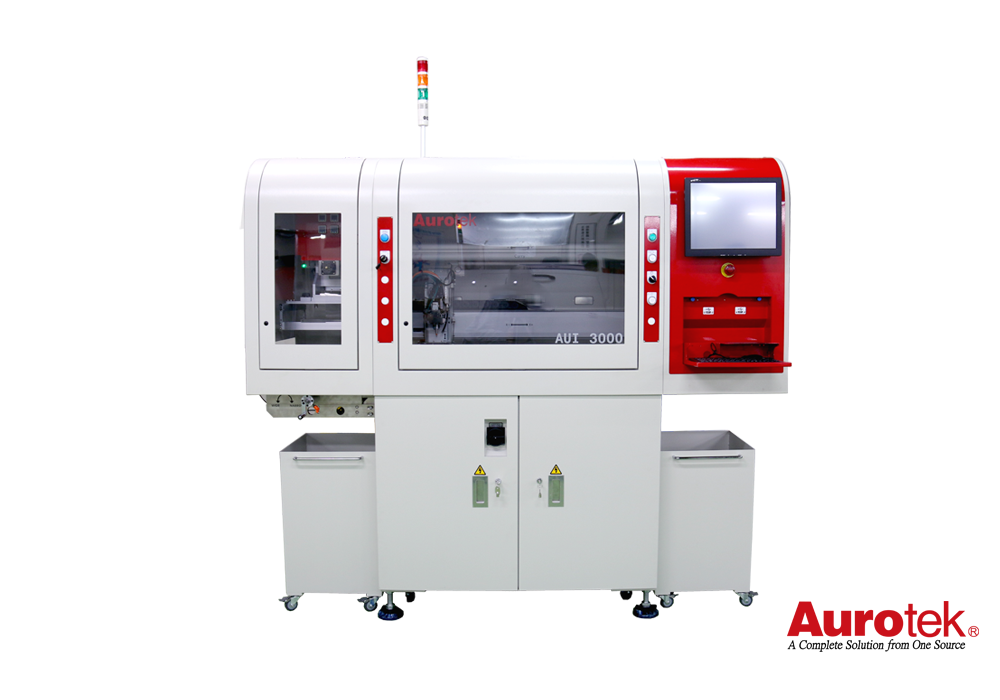

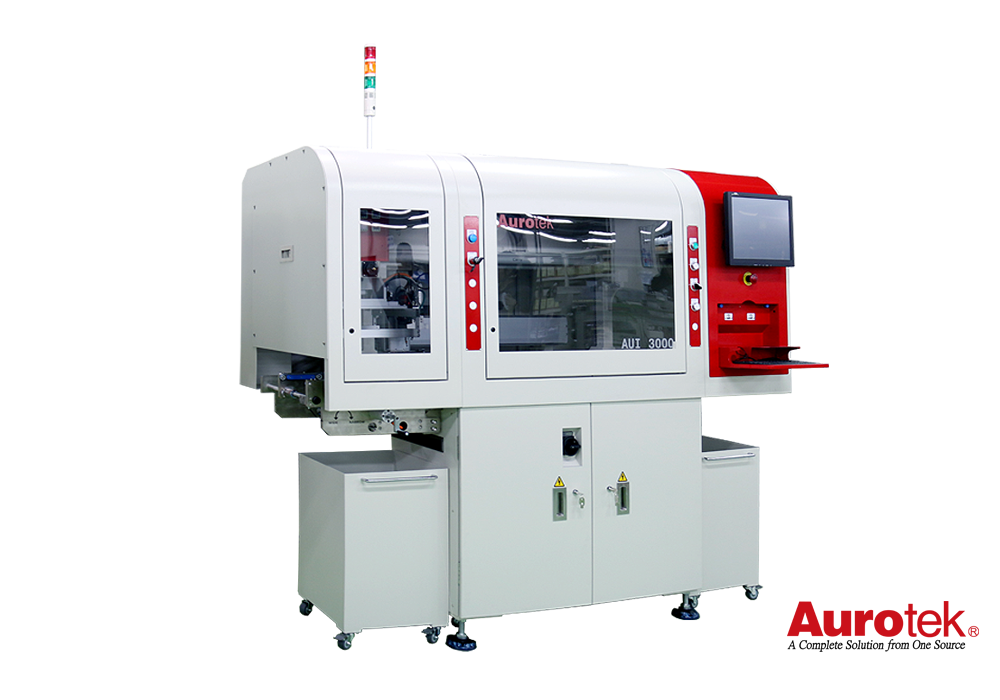

Fully-Automatic PCB Separator AUI 3000/3000C
PRODUCT DESCRIPTION

    Inheriting the excellent design of AUO series, the high-efficiency dual working table with automatic loading / unloading system, the fully-automatic PCB Separator AUI series is born.
    In addition to the features of clean working, effective PCB separating and easy to operate, the AUI series is applicable to assorted sizes of PCB.
    We provide flexible  and  customer-configurable  options  for  different production need such as spindle and dust collecting system, and other specific functions requested by customers.
    The  AUI  series  is  the  closest  to  your  production  management requirement, the user-friendly operation interface, the cutting path simulation & optimization, and POKA YOKE processing control provides the customer a time cost-saving and production/material traceable solution.

Download Brochure
features
  • High horsepowe indusrial dust-collectors.
  • Small dust-collecting duct designed for upward or downward dust extraction systems.
  • Duct is close to the milling area, removing dust at once while depaneling
  • KURODA high precision ball screw.
  • Panasonic servo motor.
  • Sycotec spindle.
  • Advantech industrial computer.
  • Aurotek motion control card.
  • Aurotek Vision System.
  • High-speed axis modules reaches up to ( max. ) 1200mm/sec.
  • Maximum cutting speed 100mm/sec.
  • 2 parellel processing tables. Maximize production throughput while minimizes idle time.
  • Customized fixture and tools. Production changeover can be done in just a few seconds.
specifications
WORKING AREA
X: 330 mm, Y: 350 mm
Working Table
2
PCB Thickness
0.8 ~ 3.0 mm
PCB Component Height (Max.)
Upward: 15 mm, Downward: 35 mm
Motion Control
7 Axes AC Servo Motors
Moving Speed
Standard: X, Y: 1,000 mm/sec, Z: 750 mm/sec, Carrier X: 700 mm/sec, Carrier Z: 750 mm/sec Maximum: X, Y: 1, 200 mm/sec, Z: 750 mm/sec, Carrier X: 700 mm/sec, Carrier Z: 750 mm/sec
Cutting Speed
0 ~ 100 mm/sec
Cutting Accuracy
±80 μm
Positioning Repeatability
±10 μm
Cutting Modes
Linear, Circular, U-Curve, Arc, L-Curve
Standard Bits
Ø 1.0 mm, Ø 1.2 mm, Ø 1.6 mm, Ø 2.0 mm
Operating System
Windows 10
Pneumatic Pressure
0.5 / 0.6 Mpa ( 5 / 6 Bar )
Working Height
890 ~ 940 mm
Dimensions (W x D x H)
1974 x 1120 x 1720 mm *Signal Light - 561 mm
Net Weight (Approx.)
680 KGS
Vacuum Cleaner
5 HP
Standard Spindle
Standard: 4026, 265 W, (Max.) 58,000 rpm, Torque: 4.5 Ncm Option 1: 4025 DC-T, 470 W, (Max.) 30,000 rpm, Torque: 15 Ncm Option 2: AP 008-ESD, 500 W, (Max.) 80,000 rpm, Torque: 8.4 Ncm
Standard Monitor
15” Touch Panel
Power Supply
3 Phase AC 220 V ±5 % 50 Hz/60 Hz, 4.0 kw
