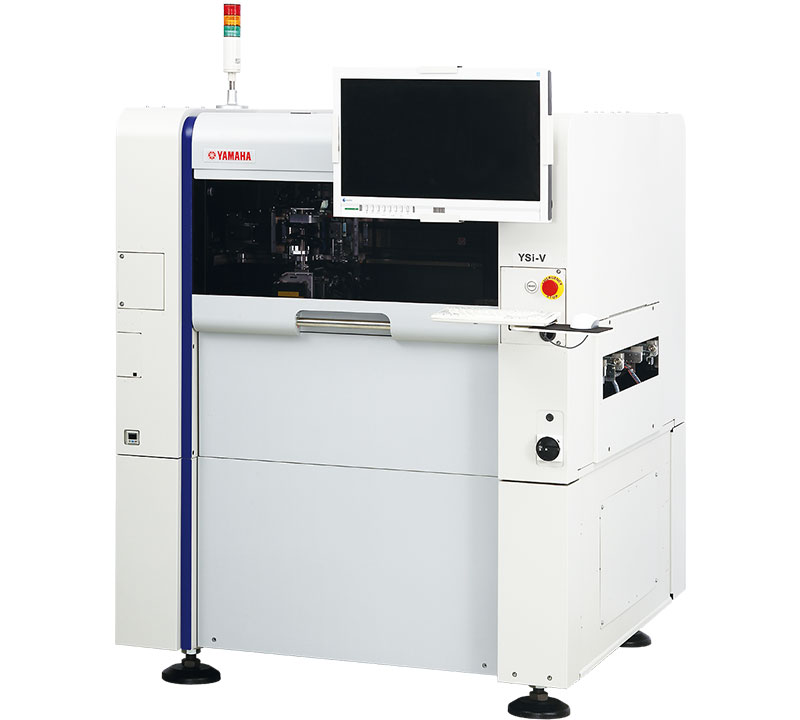

YSi-V
PRODUCT DESCRIPTION
- Includes 2 dimensional inspections, 3 dimensional inspections and 4-way oblique imaging inspections all in one unit! TypeHS2 realizes highest level inspection speed by further accelerating TypeHS.
- 2D High-speed, high-resolution 2-dimensional inspections
- 3D Height, and sloped surface 3-dimensional inspections (option)
- 4D∠ 4-direction angular camera (option)
features
- Sturdy framework designed from mounter
- 2D High-speed, high-resolution 2-dimensional inspections
- 3D Height, and sloped surface 3-dimensional inspections (option)
- 4D∠ 4-direction angular camera (option)
specifications
Applicable PCB mm
L610 x W560mm (Max) to L50 x W50mm (Min) (Single lane)
Note : L750mm long length PCBs available (option)
Number of pixels
12 megapixels/5 megapixels
Type
12M TypeHS2 /12M TypeS /12M TypeDF /5M
Resolution
12µm / 7µm / 12µm /7µm /12µm /18µm
Target items
Components status after mounting, components status and solder status after hardening
Power supply
3-Phase AC 200/208/220/240/380/400/416V ±10% 50/60Hz
Air supply source
0.45MPa or more, in clean, dry state

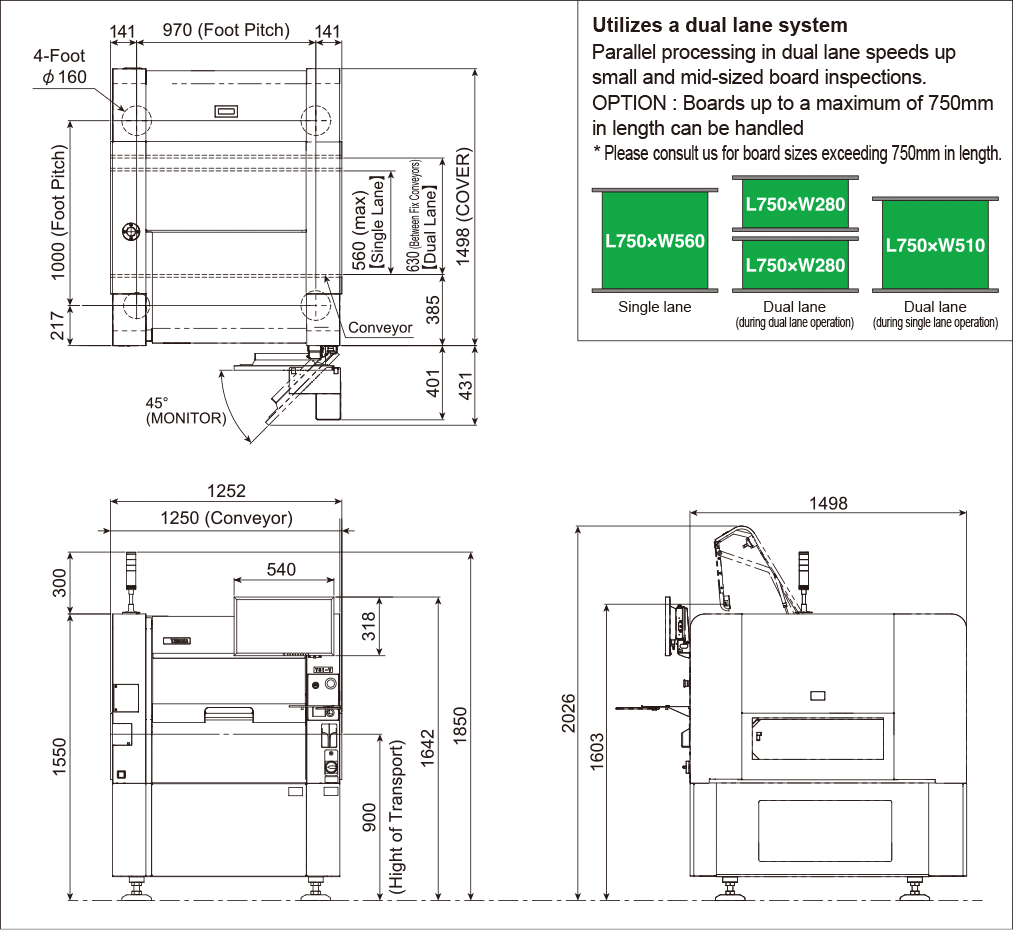

External dimension
L1,252 x W1,498 x H1,550mm (excluding protrusions)
Weight
Approx. 1,300kg
