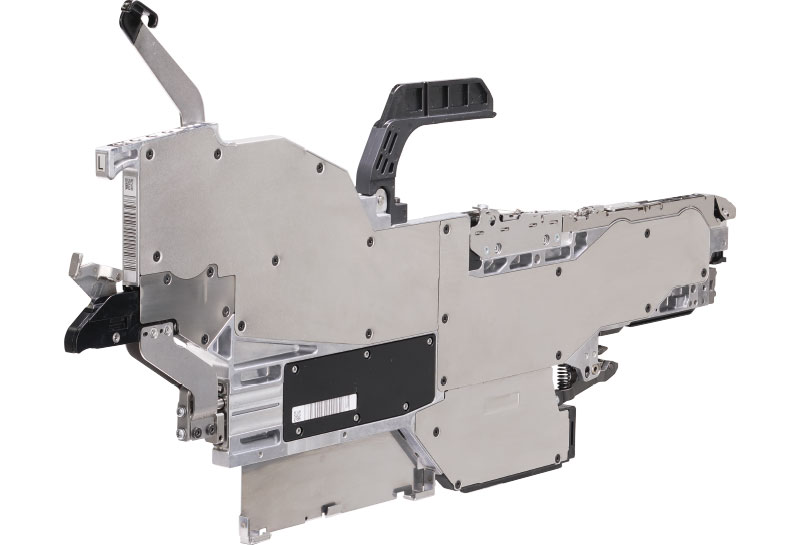

Auto Loading Feeder
PRODUCT DESCRIPTION
    • Innovative parts supply
    • Auto feed of tape-mounted parts
    • Superb operability
features
  • Automatic supply of tape components
  • Labor-saver! Reduce tape setting time. No need to recover top tape. Not needed to splice.
  • Improved machine operating time
  • Superb operability
specifications

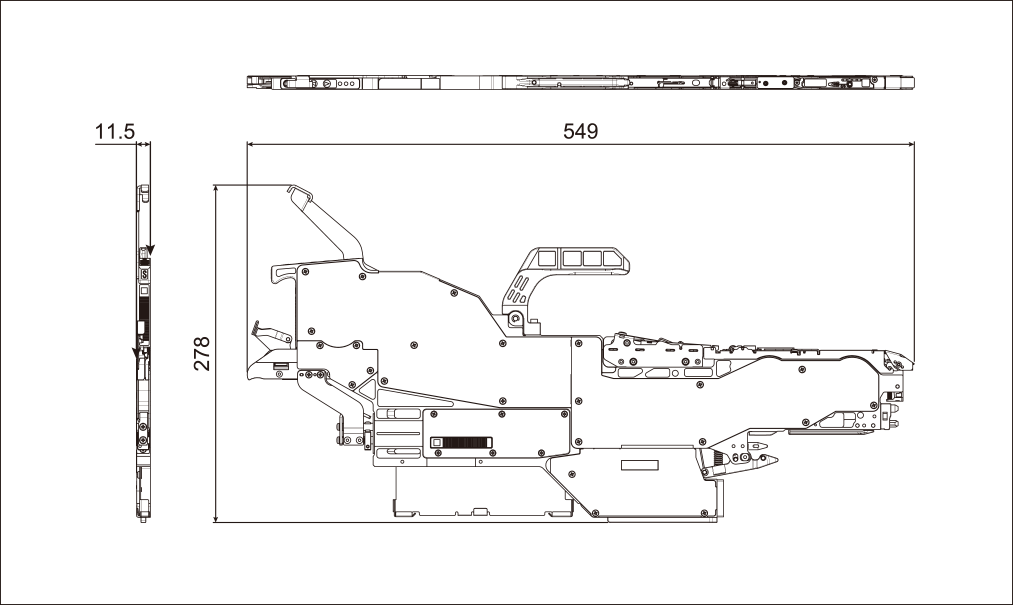

External dimension (excluding projections)
L 549 × W 11.5 × H 278mm
Weight
Approx. 1.50kg
Compatible tape
Width 8mm, Maximum thickness 1mm * There are restrictions. Please contact us for more details.
Compatible tape
Material Paper / (Emboss * Under development) * Pressure Sensitive Adhesive Cover Tape (PSA) can not correspond.
Applicable reel specifications
Feed pitch setting 2mm / 4mm Reel width 14.4mm or less, φ382mm or less
Applicable reel specifications
When using preset holder, Reel width 13.6mm or less, φ178mm or less.
8mm-converted installation occupied width
12mm pitch
Loadable minimum tape length
400mm or more
Applicable components
0603 to 3216mm
Feeder type
4 types 2S (0603/1005) / M (1608) / L (2012) / LL (3216)
Tape loading time
Approx. 5 sec * From tape feed start to pickup preparation completion.
Compatible mounter
YS / YSM / YRM series with tape cutter
