SC-ML736E
PRODUCT DESCRIPTION
Simple structure makes operability and maintenance easy

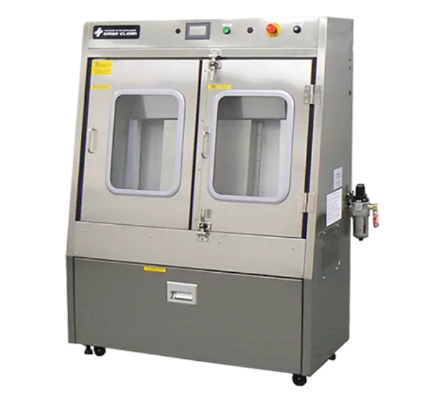

Ultrasonic stencil cleaner
Long-selling products. Over 400 units delivered
features
- Easy Operation Touch Panel.Automatic operation from cleaning to drying! Real-time display on touch panel.
- Open door with one hand
- Large reduction of solvent consumption by 30% scale-down of cleaning space.
- Can be cleaned by solvent only 18 liters.
- State of the machine is visible by level gate for solvent and large observation window.
- Replacement of the solvent and maintenance is easy by drawer type door.
- Simple and easy Ergonomics Design
specifications
Product No.
SC-ML736E
Outside dimention and Weight
W: 1,290 x D: 553 x H: 1,466 mm
Approx. 137kg
Power
AC 100 V 50/60 Hz
350 VA
Ultrasonic
40 kHz, 150 W
Applicable stencil size
L: 550 x W: 600 mm *1
L: 550 x W: 650 mm *1
L: 736 x W: 736 mm
Air
0.4 MPa, 800 NL/min
Exhaust duct
Wind speed 5 m/sec、Diameter φ98
Performance
Clean Approx. 3 min *2
Dry Approx 5 min *2
