T151-RTR

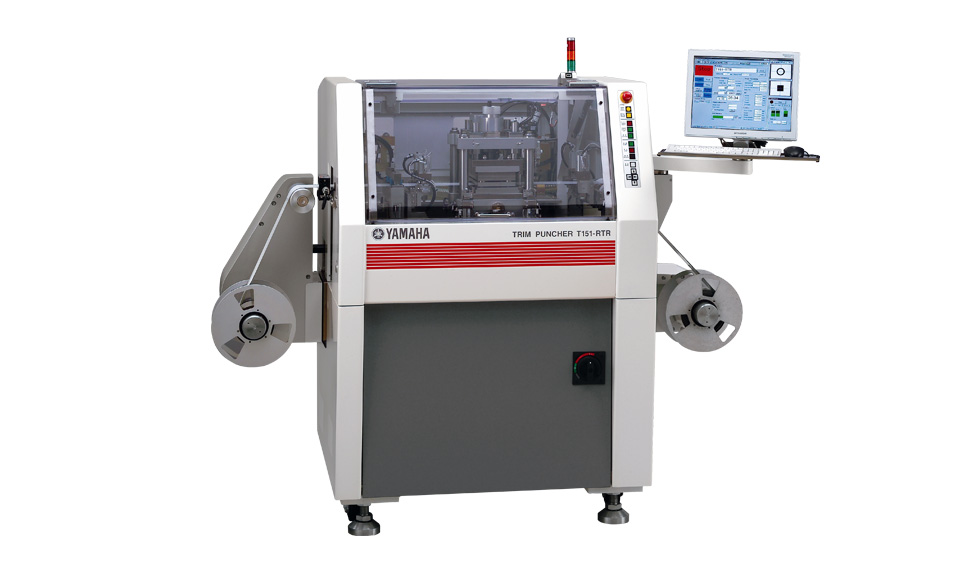

PRODUCT DESCRIPTION
A 158 mm wide roll transfer type machine. Up to 2 t thrust trimming at high speed (1.80 seconds/hole) with high accuracy (±25 μm) is possible.
features
- Max. work sheet size:Roll witdh : Max. 158mm
- Work sheet transfer:Roll to Roll
- Thrust power:Approx. 2t

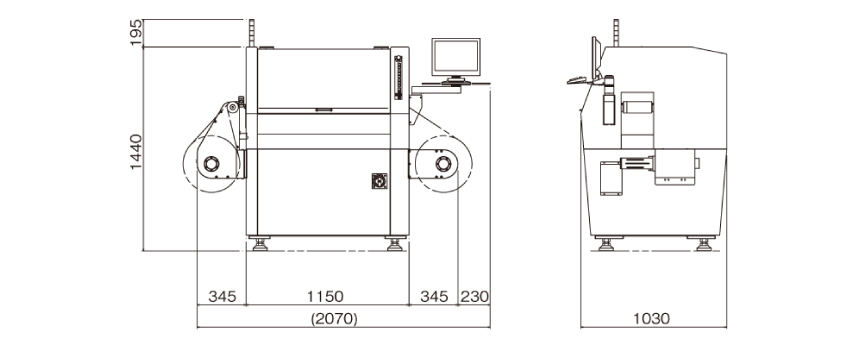

specifications
Model
T151-RTR
Type
T151-RTR-2N
Application examples
Flex PCB, Various film materials etc.
Processing capability-Work sheet size
Roll witdh : 48~158mm
Processing capability-Range*1
(X)500mm／(Y)158mm
Processing capability-Accuracy*2
±25μm
Processing capability-Speed*2
1.8 s/shot
Punching head-No. of heads
1
Punching head-Thrust Power
Approx. 20,000N (2,040kgf)
Die module-Max. punching size
X110mm x Y160mm
Die module-Max. half-cutting size
X110mm x Y160mm
Die module-Built-in RFID
Provided
Work sheet transfer-Loading / Unloading
Automatic
Image processing -Camera view
X4.8 x Y3.6mm (standard)
Image processing -Pattern detection
Pattern recognition via grayscale
Image processing -Illumination type
Transmission light, reflection light
Hardware-Interface
LAN,USB
Hardware-Display
17 inch LCD with touch panel
Software-OS
Windows7
Software-Production support function
Punching deviation measurement, NG punching, automatic creation of optimal punching path, automatic punching offset, punching deviation accuracy measurement, measurement result output, die shot count
Usage environment-Weight
Approx. 1,500kg
Usage environment-Power supply
1-phase, 180 to 240V AC, 50/60Hz, 3kVA
Usage environment-Dry air
0.5MPa
