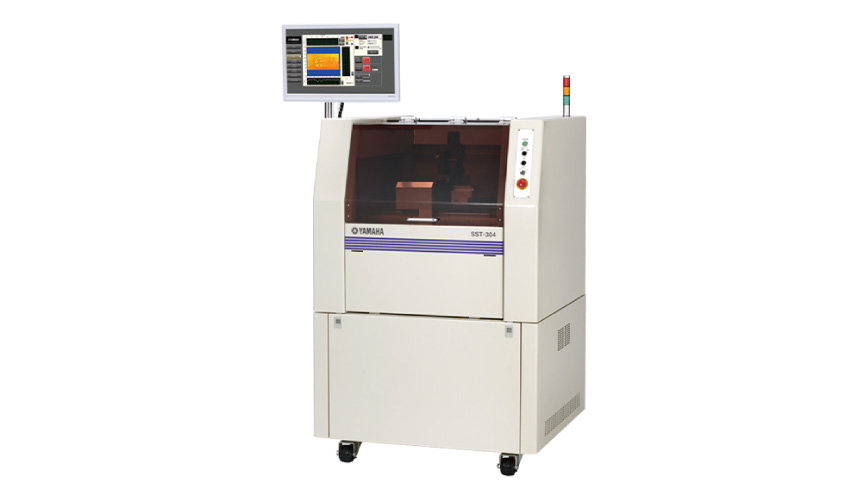

SST-304 / SST-304C

PRODUCT DESCRIPTION

This equipment can inspect various workpieces for air bubbles, peeling spots, defects, and crimping failures inside.

With a Yamaha ultrasonic amplifier installed, inspection without touching the workpiece in the air is realized. Air bubbles and peeling spots difficult to be detected by X-ray inspection can be vividly detected. A standalone/general-purpose type, and a full-auto/conveyor type are available.

Non-contact inspection based on ultrasonic transmission by using sound (="sono") image (="graph")
SST-304C supporting product line and automation. Design and manufacturing carried out according to the customer's specifications
Various defect inspections supported
Customization supported depending on the workpiece size (Such as changing the equipment size)

Send Enquiry

features

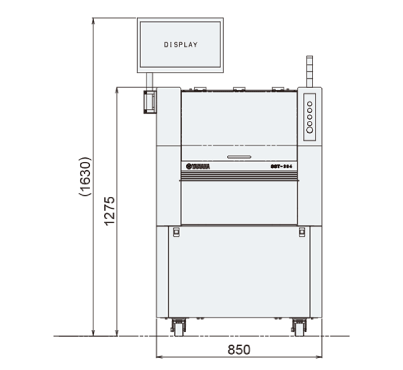

SST-304, Standalone/general-purpose type : Scanning range : W322 x D230㎜
Loading / Unloading : Manual
Feature : High general versatility
SST-304C, Full-auto/conveyor type : Scanning range : W400 x D280㎜
Loading / Unloading : Automatic
Feature : Production line/automation supported

specifications

Type

SST-304 / SST-304C

Scanning range

W322 x D230mm / W400 x D280mm

Drive

AC servo motor 4 axis / AC servo motor 4 axis

(Drive option)

Rotation measurement unit (servo motor 1 axis)

Display

18.5 inch wide LCD / 24 inch wide LCD

Data

HDD / HDD

Weight

Approx. 450kg / Approx. 600kg

Power voltage, power supply

AC100V~220V, 50/60Hz, 1kVA / AC100V~220V, 50Hz, 1kVA

Air

Unused / Unused

Usage temperature

5～40℃ / 5～40℃

Automatic test

Communication with the host computer via an external IO terminal Barcode acquisition, storage of results A wide variety of models supported through model registration
